Drilling monitor · event detection · offset analogs

You don't upload your well. You mine it where it is.

GeoClick turns the mudlog files your rig already produces into a live dashboard: depth and time tracks, a rule-based event monitor, geology beside drilling response, well-to-well comparison and 3D trajectories. The engine runs on your workstation; only ciphertext leaves it.

Start a free trialInstall the engine
Mudlog CSV · LAS · WITSMLOne-click installNo per-rig hardwareCancel any time
Depth view: ROP, WOB, torque, SPP, mud weights, temperatures, pits, lithology, alteration, minerals and losses, with the event monitor on the right
US$149/moBasic, per user
14 daysFree trial, no card
1 rigLive rig included
7Add-ons
v1.1.0Engine version
2026-10-15Last release
01Data stays local

Three places, three keys. We hold the one that opens nothing.

RAW FILESNever leave the workstation. Drop them in one folder; the engine sorts them by well and kind and builds the dashboard objects on your disk.
CIPHERTEXT ONLYObjects are encrypted with a passphrase chosen on your workstation and typed into your browser. Our servers store what they cannot read.
LEAKED LOGINA stolen username and password opens an empty dashboard. Without the data passphrase nothing decrypts, and the passphrase is never sent.

Read the security model for the exact key derivation and what each secret unlocks.

02What you see

The morning call and the night shift, on one depth axis.

D

Depth and time tracks

ROP, WOB, RPM and torque band, SPP and flow, mud weights and ECD, temperatures, pit volumes and paddle. 1 m on-bottom bins and 1-minute medians; layouts are yours.

E

Event monitor

Losses and gains from pits and paddle, total loss of returns, drilling breaks at steady WOB/RPM, torque and SPP spikes, stick-slip, thermal trend, flat-lined sensors, gaps. Each with its evidence.

G

Geology beside the drilling

Lithology, alteration intensity, minerals and logged loss zones from your tables, drawn against the same depth axis as the drilling response.

C

Compare wells

Two to four wells on MD, TVD or elevation, aligned on the clay-cap base, first epidote or first loss, side by side or overlaid.

A

Offset-well analogs

Which wells and which 200 m intervals are comparable, scored on drilling response, geology and events, with the drivers of each match.

3D

Map and 3D trajectories

Plan view and 3D well paths with casing shoes, coloured by lithology, ROP or any parameter.

03How it works

Install once. Drop files in one folder. Open the dashboard anywhere.

Install the engineOne click from the download page: Windows setup exe, or a one-line installer on macOS and Linux. No admin rights.
Drop your files~/GeoClick/Raw_Data takes mudlog CSV, LAS, WITSML, geology and loss tables, surveys, zips. The engine sorts them by well and kind.
Choose a passphraseIt derives the AES-256 key that encrypts every object. It lives on your workstation and in your team's browsers, never on our servers.
Open the dashboardSign in from any device, enter the passphrase, and the data decrypts in the browser. Or open the engine's output folder directly: zero upload.
04Fast everywhere

A static app on the edge, with the heavy work off the main thread.

EDGE + IMMUTABLEStatic build served from the CDN nearest you (Singapore for Indonesia), hashed assets cached for a year, Brotli on the wire. No server on the request path.
WORKERSDecryption, decompression and the level-of-detail pyramid run in a web worker; the page only draws. Months of one-minute data scroll at frame rate, on a phone too.
ZERO THIRD PARTIESThe dashboard's policy allows scripts from itself only. No analytics, no tag managers, no chat widgets. Your browser talks to us and, if you choose the AI add-on, to Anthropic with your own key.
05Screens
Events tab with filtered severities
Event monitor with severity filters and evidence lines
Compare mode aligned on a geological marker
Compare mode aligned on the clay-cap base
3D trajectories
3D trajectories coloured by parameter
Analogs tab
Offset-well analog ranking with drivers
Time view
Time view with hole depth and bit position

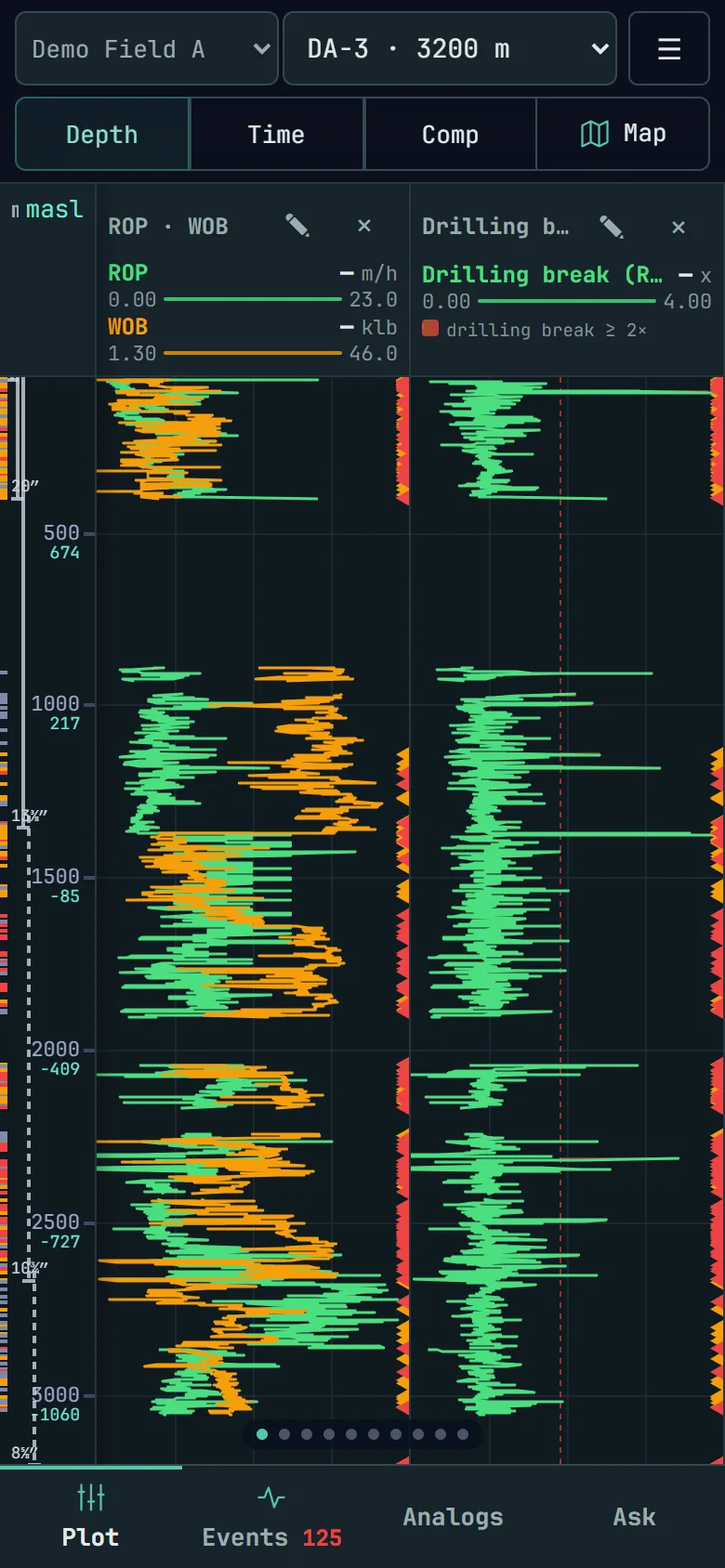

Phone layout
Phone layout: two tracks per screen, pinned depth axis
06Pricing

One subscription per user. Add what you need, any month.

Basic · US$149 / user / month

One active rig, your own encrypted data space, unlimited historical wells, all tracks, geology, casing, the event monitor and encrypted sync. US$1,490 per year.

Add-ons

Compare (US$49), Analogs (US$79), Map & 3D (US$39), AI Monitor & Ask (US$59, no API key: reasoning runs on your workstation with your Claude sign-in or a local model), Alerts (US$19), extra rig (US$99), priority support (US$99) per user per month.

Enterprise

Teams with shared data spaces, several fields, SSO, deployment under your domain or on your cloud, named support engineer. Talk to us.

Configure and subscribe

Open the folder. Drop the files. Keep the data.

Fourteen days free, no card, sign-in details in your inbox the moment the order completes.

Start a free trial Download the engine
